Model ：LM120
Capacity (kg/h)：500kg/h
Main power (kw)：55kw
Feeder power (kw)：0.6kw
Screw Diameter (mm):Φ80
Cutter power (kw)：0.8kw
Machine size (mm):25*2.1*1.9m
Weight (kg):15T

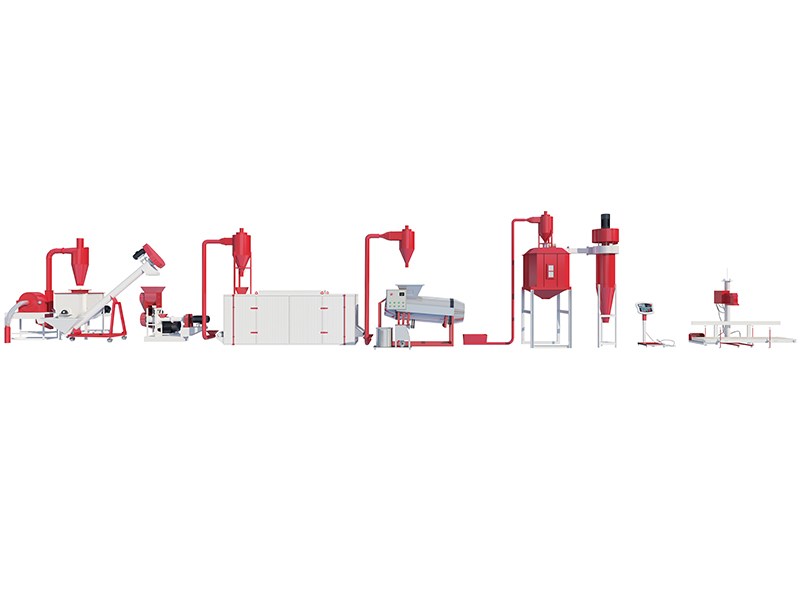

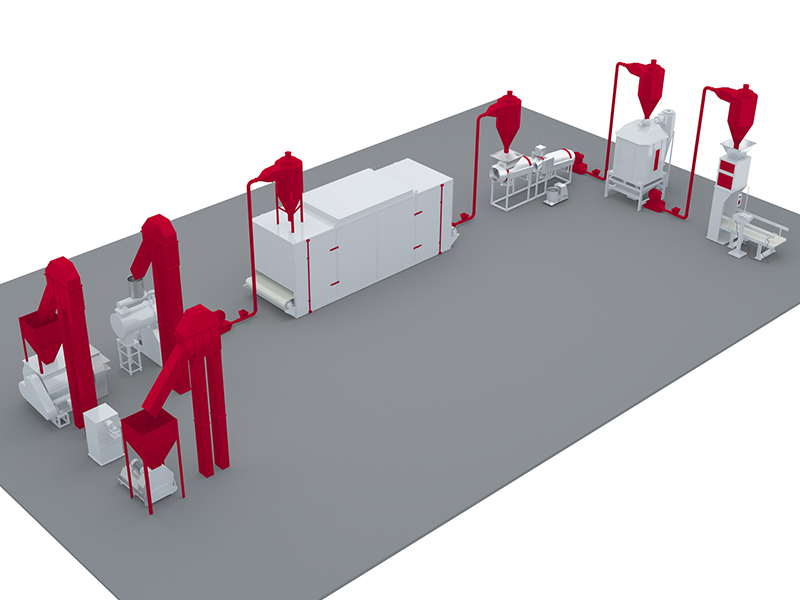

The Automatic production line suite for commercial business in fish farm or fish feed factory. the automatic line help you save the worker salary. the capacity from 200kg-10ton/h we can produce. we can according to your requested to make different design. Floating Fish feed pellet machine using for aquaculture and animal husbandry. For example: catfish、Tilapia fish 、dog、tortoises、frogs and so on. Just change mould can make many different shape . Output pellet can floating on water within 12Hours not sink and not dispersing . Not sink and not dispersing keep water clearly no polluting. After puffed feed pellet through high temperature will killing such as Escherichia coli and Salmonella, not only keep fish eat health food, also keep fish easy to eat and digest, make your fish growing fast. We have semi-automatic and automatic from 200kg/h-5T/h output for your choice.
Spacification ：
| Model | Capacity （kg/h） | Main power
(kw) |
Feed power (kw) | Screw diameter
(mm) |
Cutter power (kw) | Conditioner power (kw) | Size
(mm) |
Weight (kg) |
| LM60-B | 180-200 | 15 | 0.4 | 60 | 0.4 | 0.75 | 1850*1150*1380 | 520 |
| LM70-B | 250-300 | 18.5 | 0.75 | 70 | 0.75 | 1.1 | 2460*1550*1740 | 940 |
| LM80-B | 350-400 | 22 | 1.1 | 80 | 0.75 | 1.5 | 2650*1450*1750 | 1000 |
| LM90-B | 500-600 | 37 | 1.1 | 90 | 1.1 | 2.2 | 2600*2100*1900 | 2000 |
| LM120-B | 700-800 | 55 | 1.1 | 120 | 1.5 | 2.2 | 3200*1950*1900 | 2200 |
| LM135-B | 1000-1200 | 75 | 1.5 | 135 | 2.2 | 3 | 3750*1980*1800 | 2500 |
| LM160-B | 1800-2000 | 90 | 2.2 | 160 | 2.2 | 4 | 6600*2800*2330 | 3800 |
| LM200-B | 3000-4000 | 132 | 2.2 | 200 | 3 | 5.5 | 6600*2900*2350 | 4500 |
10 different formula as follow:
1, corn meal 50%, wheat middling flour 12%, flour 10%, soybean meal 3%, rice flour 5%, meat 20%.
2, corn meal 55%, wheat middling flour 10%, flour 5%, puffing powder 20%, soybean meal 3%, meat powder, 5%, animal fat 1.5%, salt 0.5%.
3, wheat middling flour 15%, rice shell powder 10%, soybean meal 20%, rapeseed meal 16%, and cottonseed meal 8%, and corn meal 5%, fish meal 5%, flour 25%.
4, corn rice meal mixture 20%, flour 25%, bran 5%, soybean protein 20%, fish meal, rapeseed meal 16%, cottonseed meal 8%.
5, corn rice meal mixture 17%, flour 25%, bran 5%, soybean protein 20%, fish meal 9%, rapeseed meal 16%, cottonseed meal 8%.
6, corn rice meal mixture 11%, flour 25%, bran 5%, soybean protein 20%, fish meal 15%, rapeseed meal 16%, cottonseed meal 8%.
7, corn meal 52.8%, bran 22.5%, soybean meal 17.5%, fish meal 3.5%, bone powder 1.2%, trace element 1.5%.
8, corn meal 60%, soybean meal 10% , bran 17%, cottonseed cake 10%, calcium hydrogen phosphate 2%, additives 1%.
9, corn meal 50%, soybean meal 28.7%, calcium hydrogen phosphate 2%, stone meal 1.3%, meat powder, 3%, premix 15%.
10, corn meal 65.9, soybean meal 16%, bran 12%, fish meal 3.2%, calcium hydrogen phosphate 1.4%, premix 1.5%.
Raw materials can be added to table salt, seasoning oil.
Moisture of raw material between 15%-18%.
Floating fish feed machine Final Products :
Extrue different size from 1mm-12mm , Can feed from baby fish to big fish
Floating fish feed machine Spare Parts:

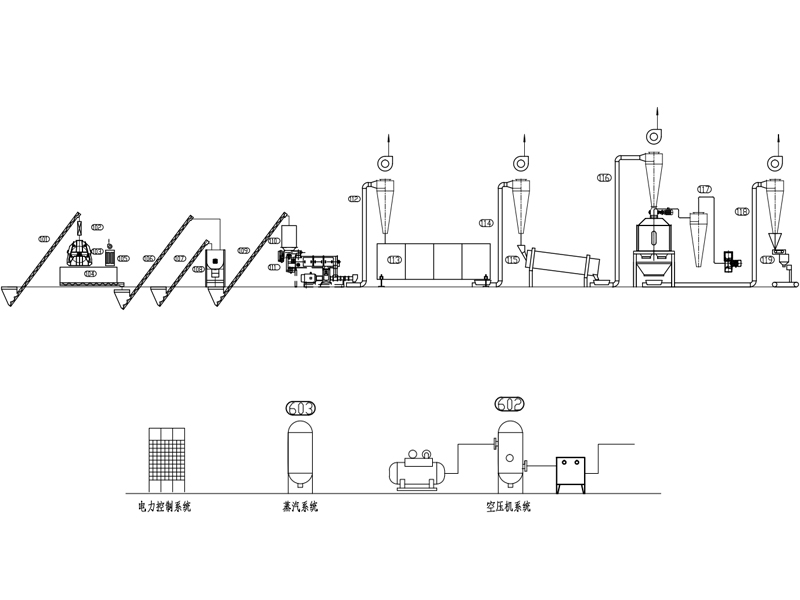

Floating fish feed machine how to working ?
Lima Floating fish feed machine Manufacture Is Your Best Choice ！
Floating fish feed machine package
