Lima is a professional company and cooperates with world-famous enterprises and research institutes. Combining advanced Europe technology with years of practical experience, we have successfully developed different kinds of fish feed pellet machines with advanced technology and reliable performance.
Model ：LM50 -Diesel
Capacity (kg/h)：60-80g/h
Main power (kw)：18HP
Feeder power (kw)0.4kw
Screw Diameter (mm):Φ50
Cutter power (kw);0.4kw
Machine size (mm):1660*1170*1050
Weight (kg):540kg

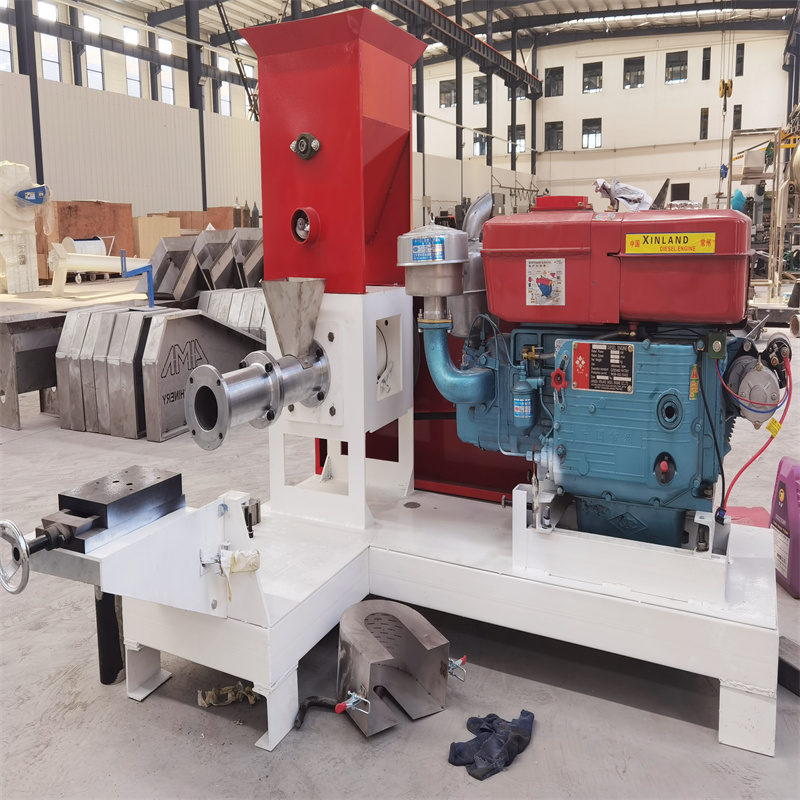

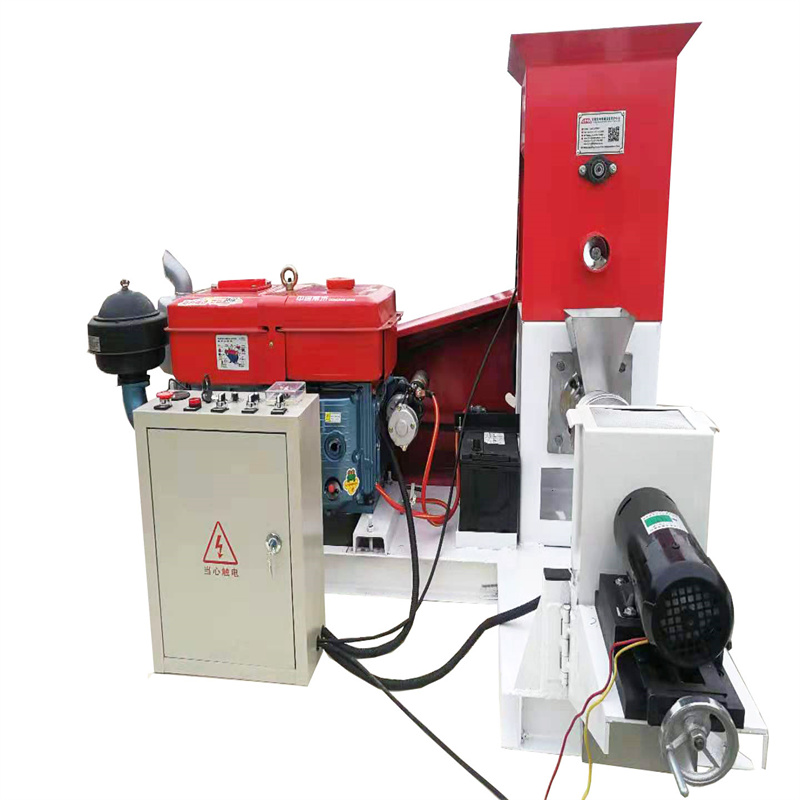

This floating fish feed machine is widely preferred by small or medium fish farms. It processes various grain materials into high-grade aquatic pellet feed for fishes, dogs, tortoises, frogs, shrimps, crabs, etc. The fish feed extruder machine has different molds, so the pellet size is adjustable according to your production needs. We also supply the fish feed puffing machine that fits well in large-scale fish farming and fish feed production.
Machine Functions:
1. The pellet size is from1mm to 12mm, fit for different fishes. Output pellet can be floating on the water within 12 Hours, not sink and not dispersing, which keeps water no polluting. After puffed feed pellet through high temperature will killing such as Escherichia coli and Salmonella, keep fish eat health food, keep fish easy to eat and digest, and make your fish growing fast.
2. We have different scales, the capacity from 30kgs to 2 tons (this is a production line) per hour.
We can also make new machines according to the clients’ different requirements.
PRODUCT PARAMETER
| Model | Capacity (kg/h) | Main power (kw) | Feeder power (kw) | Screw Diameter (mm) | Cutter power (kw) | Machine size (mm) | Weight (kg) |
| LM40 | 30-40 | 5.5 | 0.4 | Φ40 | 0.4 | 1400*1030*1200 | 220 |
| LM40 -Diesel | 30-40 | 12HP | 0.4 | Φ40 | 0.4 | 1400*1250*1200 | |
| LM50 | 60-80 | 11 | 0.4 | Φ50 | 0.4 | 1470*1100*1250 | 320 |
| LM50-Diesel | 60-80 | 18HP | 0.4 | Φ50 | 0.4 | 1660*1170*1050 | 540 |
| LM60 | 100-150 | 15 | 0.4 | Φ60 | 0.4 | 1470*1100*1250 | 350 |
| LM60-Diesel | 100-150 | 25HP | 0.4 | Φ60 | 0.4 | 1470*1120*1250 | |
| LM70 | 180-200 | 18.5 | 0.4 | Φ70 | 0.4 | 1650*1400*1300 | 580 |
| LM70-Diesel | 180-200 | 30HP | 0.4 | Φ70 | 0.4 | 2060*1450*1300 | |
| LM80 | 200-300 | 22 | 0.6 | Φ80 | 0.6 | 1800*1450*1300 | 695 |
| LM80-Diesel | 200-300 | 35HP | 0.6 | Φ80 | 0.6 |
10 different formula as follow:
1, corn meal 50%, wheat middling flour 12%, flour 10%, soybean meal 3%, rice flour 5%, meat 20%.
2, corn meal 55%, wheat middling flour 10%, flour 5%, puffing powder 20%, soybean meal 3%, meat powder, 5%, animal fat 1.5%, salt 0.5%.
3, wheat middling flour 15%, rice shell powder 10%, soybean meal 20%, rapeseed meal 16%, and cottonseed meal 8%, and corn meal 5%, fish meal 5%, flour 25%.
4, corn rice meal mixture 20%, flour 25%, bran 5%, soybean protein 20%, fish meal, rapeseed meal 16%, cottonseed meal 8%.
5, corn rice meal mixture 17%, flour 25%, bran 5%, soybean protein 20%, fish meal 9%, rapeseed meal 16%, cottonseed meal 8%.
6, corn rice meal mixture 11%, flour 25%, bran 5%, soybean protein 20%, fish meal 15%, rapeseed meal 16%, cottonseed meal 8%.
7, corn meal 52.8%, bran 22.5%, soybean meal 17.5%, fish meal 3.5%, bone powder 1.2%, trace element 1.5%.
8, corn meal 60%, soybean meal 10% , bran 17%, cottonseed cake 10%, calcium hydrogen phosphate 2%, additives 1%.
9, corn meal 50%, soybean meal 28.7%, calcium hydrogen phosphate 2%, stone meal 1.3%, meat powder, 3%, premix 15%.
10, corn meal 65.9, soybean meal 16%, bran 12%, fish meal 3.2%, calcium hydrogen phosphate 1.4%, premix 1.5%.
Raw materials can be added to table salt, seasoning oil.
The moisture of raw material is between 15%-18%.
